Offsets can be accurately set up,
particularly long offsets, by use of optical instruments like cross staff or
optical square etc.

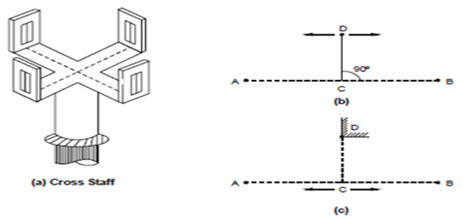

a) Cross Staff:
Two
pairs of vertical slits, mounted orthogonally on a pole staff constitutes a
simple instrument for setting out normal offsets as depicted in Figure. Each
pair of slits can form a line of sight. It is fixed on a stand. Two persons are
required to operate cross staff.
Use of cross staff:
1. To find a foot of perpendicular on chain line
2. To set out the perpendicular from a given point.
b) Optical Square:
It
may be noted that at least two surveyor’s are required to set normal offsets
while using cross staff. This disadvantage can be overcome if optical square is
used for this purpose as only single surveyor can perform this task.
Principle
of optical square:
The
angle between the first incident ray and the final reflected ray is twice that
of the angle between a pair of plane mirrors.

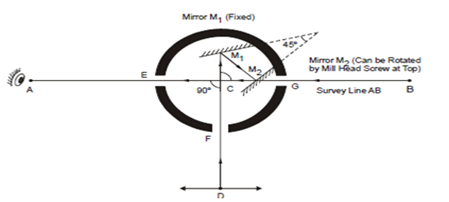

Construction:
The
optical square consists of a circular box 50mm in diameter and 12.5 mm in
depth. The box has three slits as E, F, and G. Two mirrors M1 and M2 are
mounted on a frame such that the included angle between them is 45o.
The incident ray from object D is reflected from mirror M1 in
line M1 M2 to mirror M2 and
finally along AM2 by mirror M2.
Since included angle between mirrors M1 and M2 is
45o, the angle between rays DM 1 and AM2 will
be 2 × 45 = 90o.
Optical Square |
Use of Optical Square:
1. To find a foot of perpendicular on chain line
2. To set out the perpendicular from a given point.
Procedure:
a) For cross staff:
1. First of all, the point on the survey line is fixed.
2. The cross-staff is held vertically at this point.
3. Then cross staff is turned till the ranging rod at A and B is
sighted by one pair of opposite slits.
4. Let C be the fixed point on the survey line as shown in fig.
5. Through the other pair of slight point ‘D’ is seen
6. If it is not seen the ranging pole at D is moved forwarded
and backward parallel to survey line till it is bisected.
7. After bisection, CD is exactly perpendicular to AB.
b) For optical square:
1. In order to set the offset at point C on survey
line AB, the optical square is held horizontally over the
station C with the help of a plumb bob.
2. Line of sight is aligned along line AB by
observing ranging rod at B through opening at G.
3. Next the ranging rod at D is observed through
mirrors. The image of rod D is made to coincide with the image
of rod B by moving ranging rods sideways.
4. When the two images coincide, then the line CD becomes
perpendicular to line AB.
